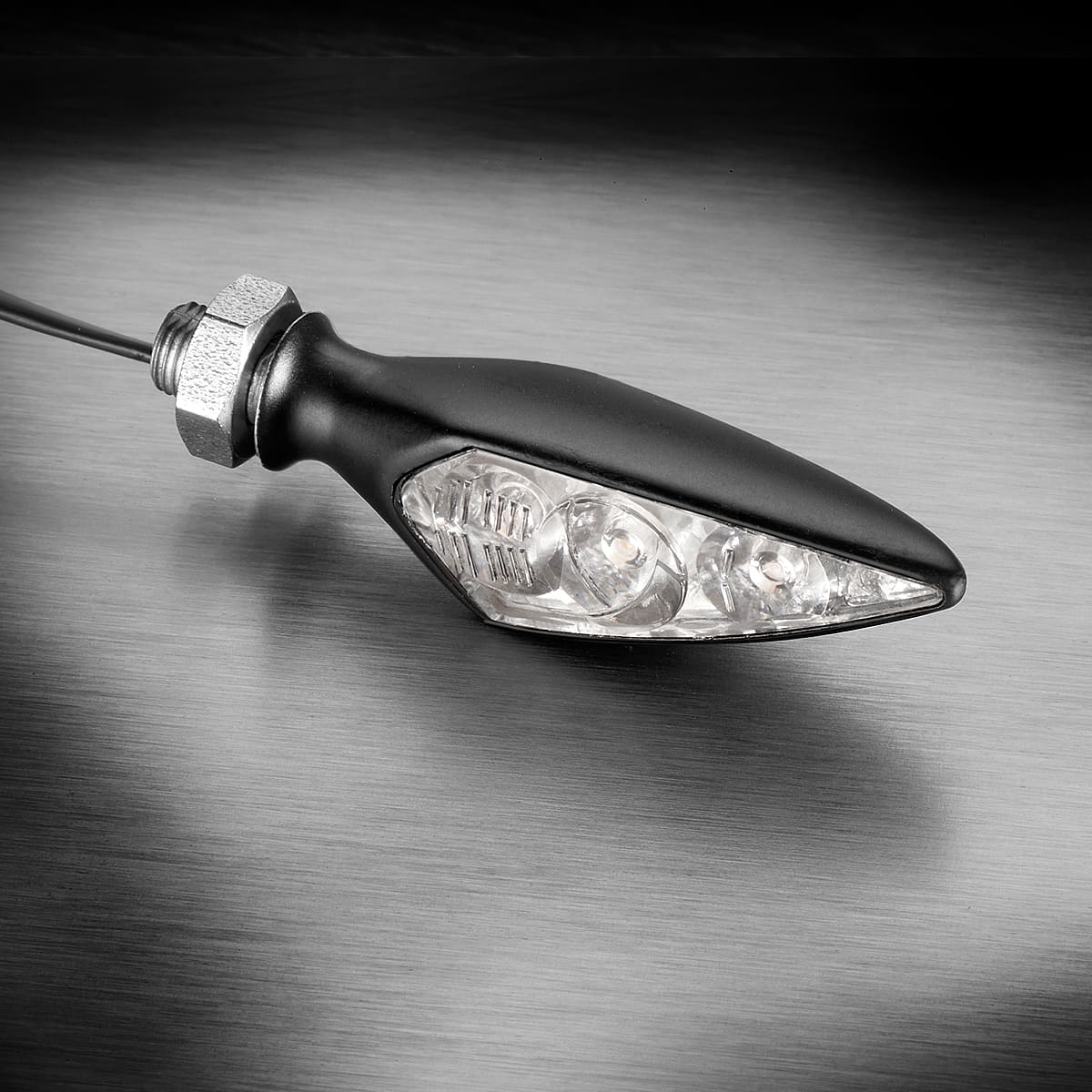

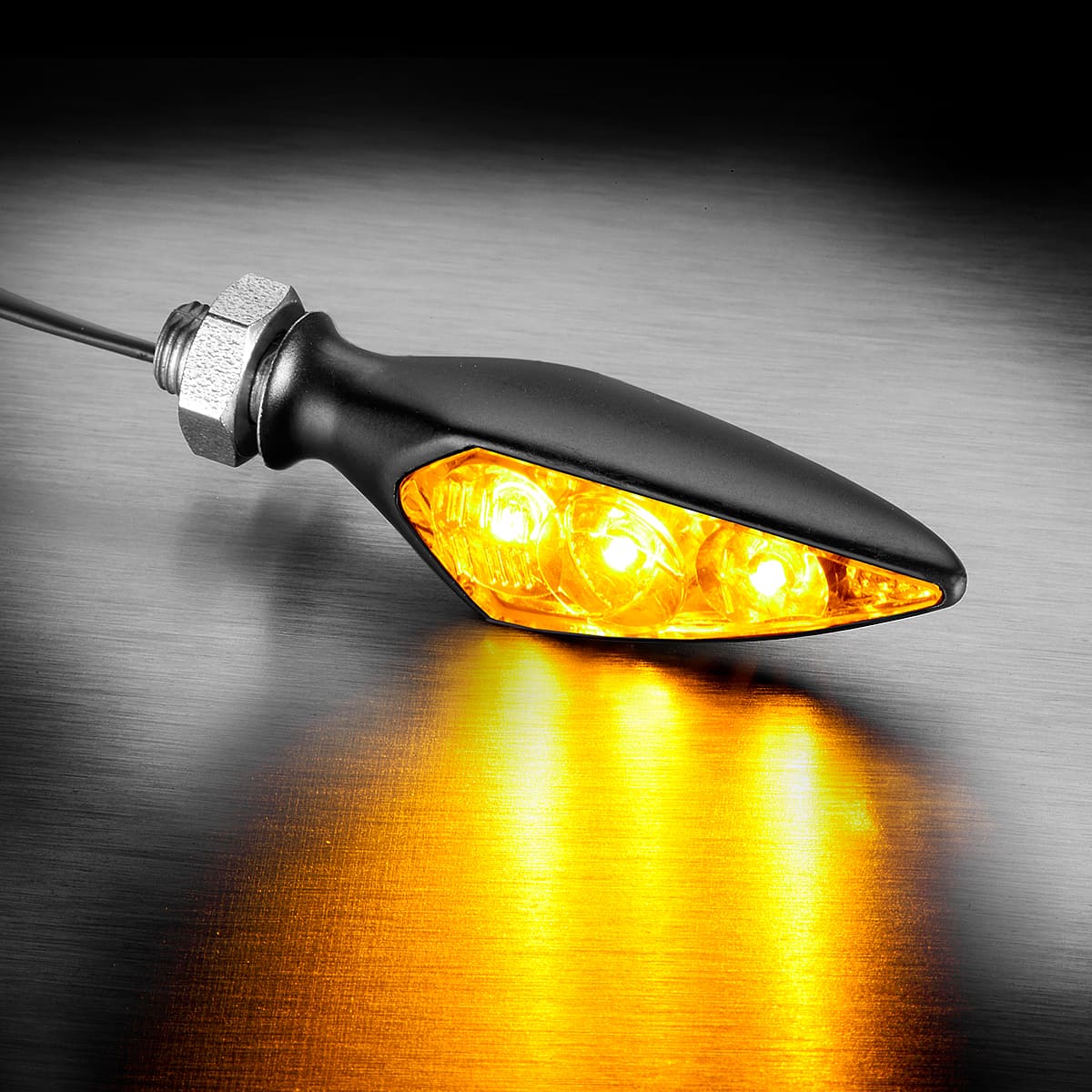

Rhombus S Extreme
€64.95
Delivery time 3-4 weeks
Product information "Rhombus S Extreme"
Angular brilliance
The Extreme version of the Rhombus S series is among the brightest Kellermann indicators to date. Combined with the drastic reduction in size, it sets entirely new design standards – and not only on motorcycles. The Rhombus S Extreme is also approved for all other vehicles such as quads, cars and trailers (ECE-R 6). On a motorcycle, this allows the indicator to be mounted as close as twenty millimetres to the headlight, blending seamlessly into the look of the bike.
Three high-power LEDs and the proven Kellermann HighPower LED Technology* produce an impressive indicator signal of unprecedented brightness. Recognised faster and impossible to overlook, the indicator ensures maximum safety on the road.**
* Combination of the IC-controlled Longlife Protection Guard® circuit with latest-generation high-power LEDs.
** Additional electronic accessories to regulate the flash rate may be required.
ECE-tested for front and rear
Suitable for all vehicles
(e.g. motorcycles, quads, cars, Super Seven, trailers, etc.)
- Extreme light output and brilliant look
- Kellermann HighPower LED Technology
- High-quality metal housing
- Longlife Protection Guard®, IC-controlled, clocked at 330 kHz
- For 12-volt DC vehicle electrical systems
- M5 x 0.5 x 6.5 mm mounting thread
- Design protected throughout Europe
Please note our extensive range of adapter accessories: Adapter accessories for Atto®, micro S and Rhombus S
Montagezubehör
Atto® rigid mounting M10 x 20mm, black for use with original 10mm bore
Atto® adapter plate handlebar HD for handlebar mounting of Atto® indicators at brake and clutch hand gearNote: Suitable for HD models with hydraulic clutch operation. Not suitable for HD models with Bowden cable clutch operation.
Content: 2 Piece(s) (€8.98 / 1 Piece(s))
Atto® adapter plate handlebar HD for handlebar mounting ofAtto® indicators at brake and clutch hand gear Note: Suitable for HD models with hydraulic clutch operation. Not suitable for HD models with Bowden cable clutch operation.
Content: 2 Piece(s) (€9.98 / 1 Piece(s))
Variable mounting adaptor M6, black This adaptor offers a clean and easy solution for various mounting options and thus replaces an otherwise complex custom-made construction.It consists of two parts: A clamping sheet and a shank nut with an M6 internal thread. The clamping sheet, which can be shifted and rotated on the shank nut, is compatible with any M5 threaded lamp (Atto®, micro S, Rhombus S) at every angle.Due to the variances of this mounting the lamp can be installed in perfect alignment with the direction of traffic and is locked in place with grub screws. For example underneath the instruments (see pictures attached).Simply replace the shaft nut of the brake or clutch lever by this shank nut. As on the pictures attached, the clamping sheet can also be installed together with the handlebar mirror.
Atto® rigid mounting M8 x 20mm, black for use with original 8mm bore
Ball head adapter Spare parts for micro and Rhombus series
Atto® Montageblech 174mm Zur Montage von Atto® Blinkern an kurzen Kennzeichen
Atto® mounting plate 174mm for mounting Atto® indicators at small license plate holders
Atto® rigid mounting M8 x 40mm, black for use with original 8mm bore
Atto® mounting plate 174mm for mounting Atto® indicators at small license plate holders
Atto® mounting plate 174mm for mounting Atto® indicators at small license plate holders
Elektronisches Zubehör
Micro relay for the pros The R 1 flasher relay has very small dimensions and flashes independently of load at a steady 75 pulses per minute. It also has a connection available for the flasher dashboard light. It is easily installed into the feed to the indicator switch, or can be swapped with the original 2-3 pole flasher relay. It is therefore suitable for all motorcycles with indicator switches. Should the change to LED indicators result in the non-intentionally activated indicators also flashing; then the indicator control light must also be connected to the R 1 relay. The ‘hazard warning’ effect will then be effectively All necessary components required for installation are included. ECE-tested Simple installation in feed to the indicator switch or swap the original 2-3 pole flasher relay Connection to indicator control light also possible Restricts the accompanying flashing of non-activated indicators Load-independent / steady flash rate Switching capacity 0-50W by 12V/ 0-24W by 6V Very small dimensions 22 x12 x 6 mm (L/W/H) Suitable for indicator switches Suitable for 6 and 12 volt DC applications
i.BOS - CL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - CL1 provides correct function of the control and hazard light, e.g. when using DF versions for Harley Davidson models with HD-LAN. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, break light)
i.BOS - EL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - EL1 provides correct function of the hazard light, e.g. when using DF versions. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, light)
i.SED V12 suitable for vehicles with 12 volt indicator application For example when mounting indicators with higher wattage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual „DF“ products on vehicles where the indicators ground is switched but not the plus as usual
i.SED V6 suitable for vehicles with 5-9 volt indicator application For example when mounting indicators with higher wattage than original indicators with higher voltage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual
Posi-Lock cable connector splash water connections. The cable is connection between seconds, without soldering.
Content: 5 Piece(s) (€1.99 / 1 Piece(s))
Posi-Lock cable connector splash water connections. The cable is connection between seconds, without soldering.
Content: 9 Piece(s) (€1.44 / 1 Piece(s))
Posi-Lock cable connector MINI Splash water connections The cable is connection between seconds, without soldering
Content: 5 Piece(s) (€1.99 / 1 Piece(s))
