Dayron Variants
TheDayron® is offered as a pure daytime running light with position light and with the Dayron®ias a daytime running light with position
light and indicator function. In addition, you can choose between the variants Innovation (kaltweiß) and classic (warmweiß) .
Dayron® Innovation
(cold white)
daytime running light
position light
daytime running light
position light
Dayron® i Innovation
(cold white)
daytime running light
position light
indicator
daytime running light
position light
indicator

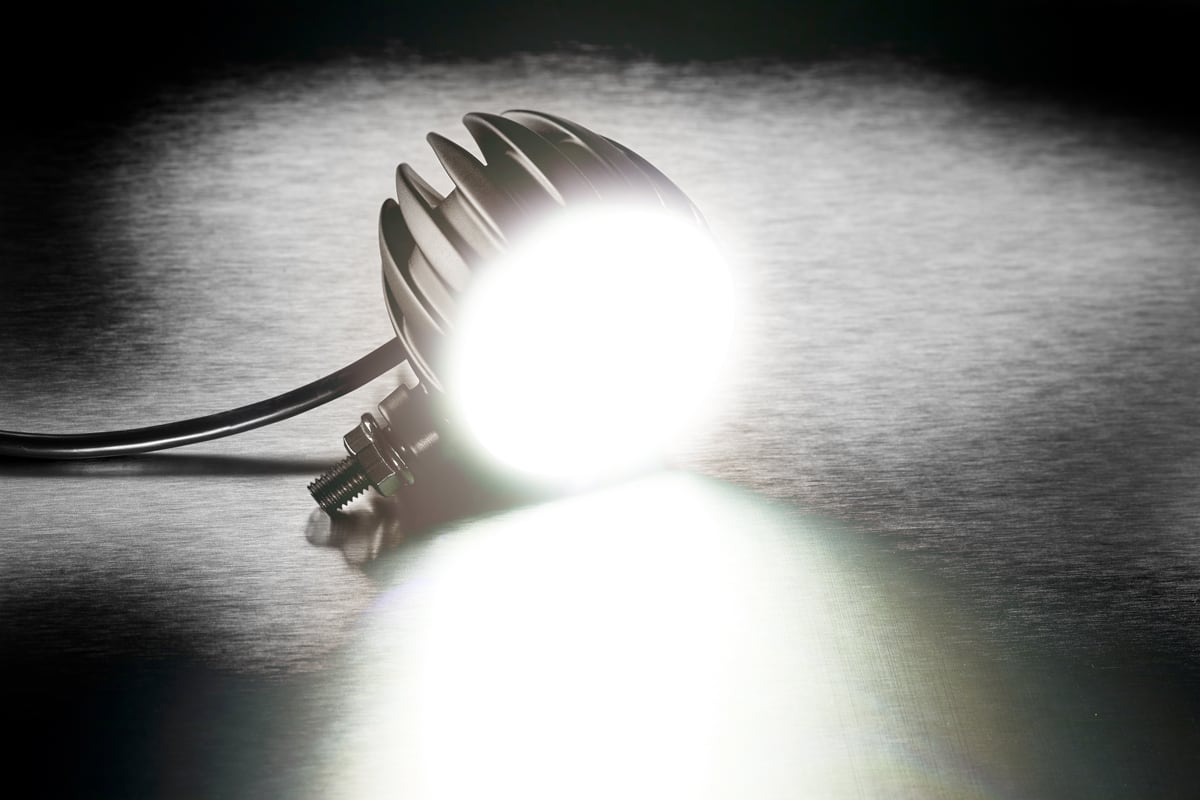

Dayron® Classic
(warm white)
daytime running light
position light
daytime running light
position light

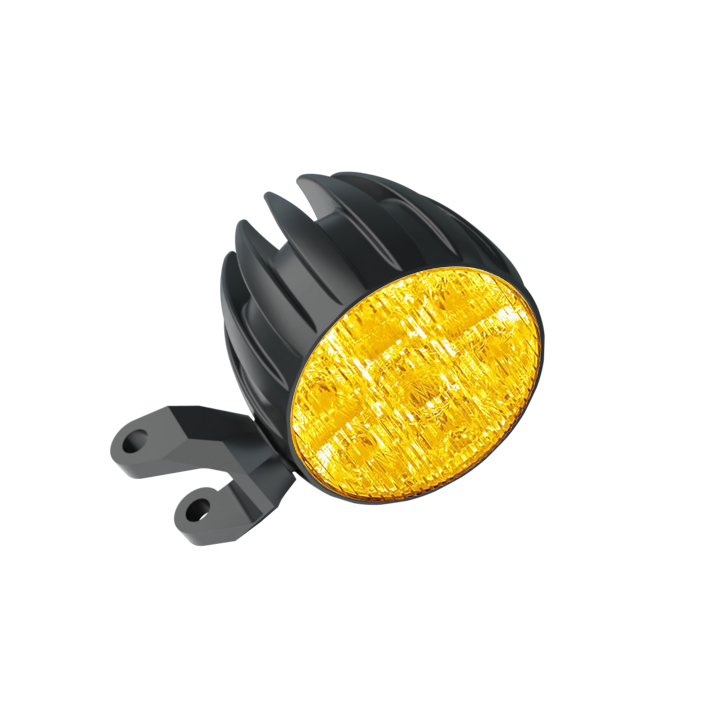

Dayron® i Classic
(warm white)
daytime running light
position light
indicator
daytime running light
position light
indicator
Dayron Mounting
The Dayron® variants offer different mounting options.

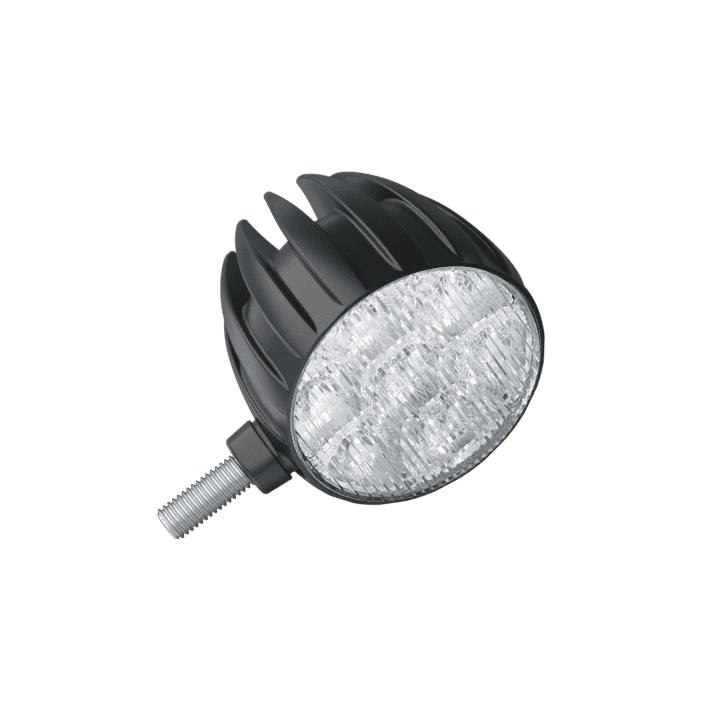

M8 Adapter
BMW R nineT Original indicator mounting
BMW R 1250 GS Original indicator mounting
Mounting positions with M8 hole
BMW R 1250 GS Original indicator mounting
Mounting positions with M8 hole

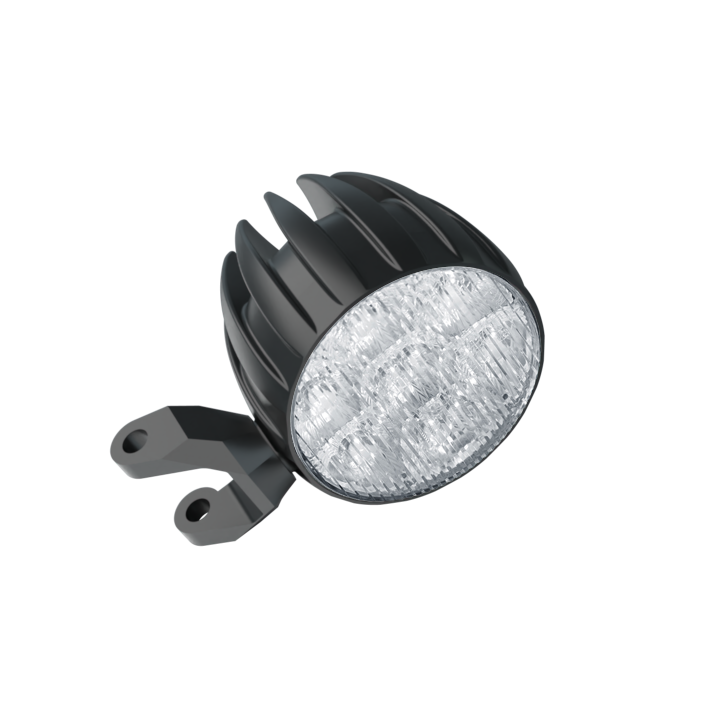

U Adapter
BMW R 1250 GS Fog light position
(fog light holder required)
(fog light holder required)

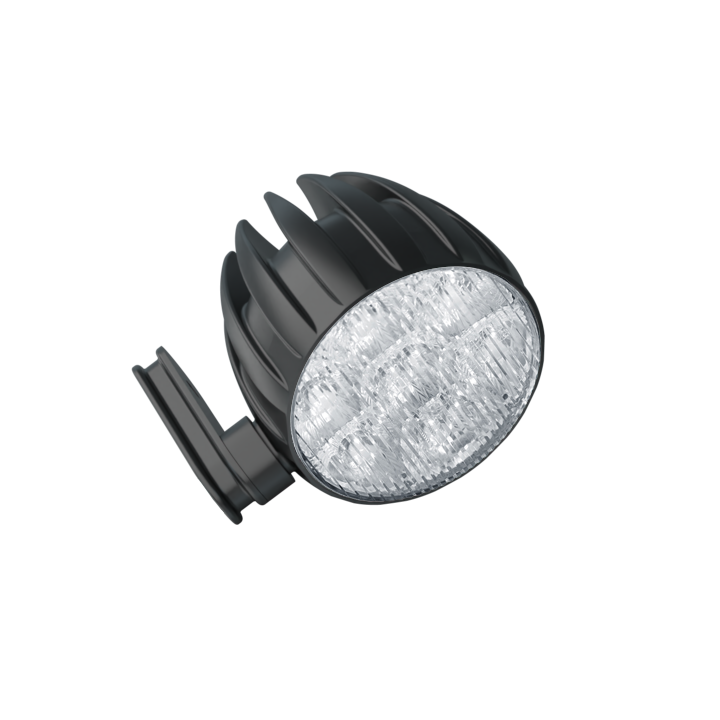

Bracket
Harley-Davidson Pan America 1250 Original indicator mounting
Harley-Davidson Pan America 1250 Special Original indicator mounting
Dayron®- Daytime Running Light System
The Dayron® daytime running light system is installed with the support of motorcycle-specific plug & play solutions. The integration into the onboard electronics of the motorcycle is done by the DRL device (Daytime Running Light Module).
This intelligent DRL device delivers the automatic light control between low beam, daytime running light and position light required by law.
Auxiliary lights with other functions can continue to operate after the daytime running light system has been installed.
DRL device Overview
- Daytime running light system that can be completely integrated into the onboard electronics.
- llation by means of Plug & Play (ready-to-plug-in connections) using model-specific add-on kits.
- The daytime running light is permanently illuminated when the low beam is switched off.
- Automatic switchover of the daytime running light to position light when the low beam is activated.

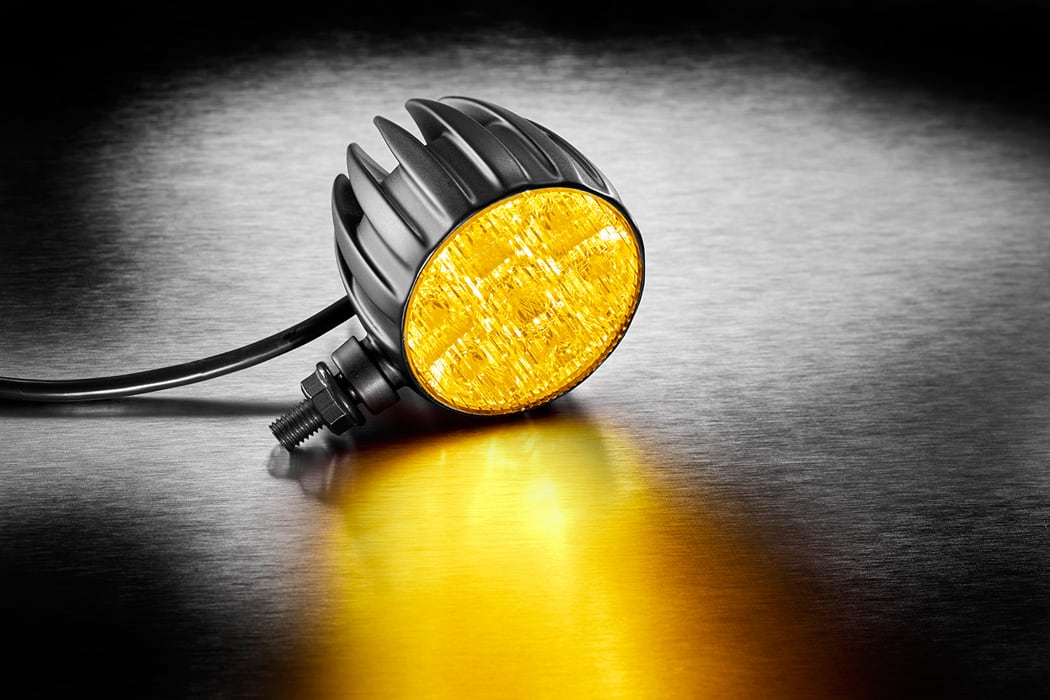

- If the indicator is activated on the Dayron®i , the daytime running light is temporarily deactivated automatically and the
- indicator lights up on the full surface.
Note on the main headlight of the BMW GS 1250 MY 2018-2023
In these model years, LED and halogen main headlights with different connectors and assignments were installed at the factory.
The connector is located directly on the left or right of the main headlight and is visible from the outside.
For LED main headlights, please check whether the headlight has a 4-pin or 6-pin connector.
For halogen main headlights, please check whether the 6-pin plug of the main headlight is assigned with 3 cables or with 5 cables.
Dayron® Classic, U-Adapter €199.95*
Lens colour: clear
Position: front
Daytime running light
Dayron® Innovation Ausleger €199.95*
Lens colour: clear
Position: front
Daytime running light
Dayron® I Classic, U-Adapter €249.95*
Lens colour: clear
Position: front
warm white
Dayron® Classic Ausleger €199.95*
Lens colour: clear
Position: front
Daytime running light
Dayron® I Innovation, U-Adapter €249.95*
Lens colour: clear
Position: front
cold white
Dayron®i Classic - Ausleger €249.95*
Lens colour: clear
Position: front
Daytime running light Indicator
Dayron® I Innovation, M8-Adapter €249.95*
Lens colour: clear
Position: front
cold white
Dayron® Innovation, U-Adapter €199.95*
Lens colour: clear
Position: front
Daytime running light
Dayron® Innovation, M8-Adapter €199.95*
Lens colour: clear
Position: front
Daytime running light
Dayron® i Innovation Ausleger €249.95*
Lens colour: clear
Position: front
cold white
Dayron® I Classic, M8-Adapter €249.95*
Lens colour: clear
Position: front
warm white
Dayron® Classic, M8-Adapter €199.95*
Lens colour: clear
Position: front
Daytime running light
