Bullet 1000® PL
€109.95
Available, delivery time: 3-4 weeks
Product information "Bullet 1000® PL"
Classic meets Hightech

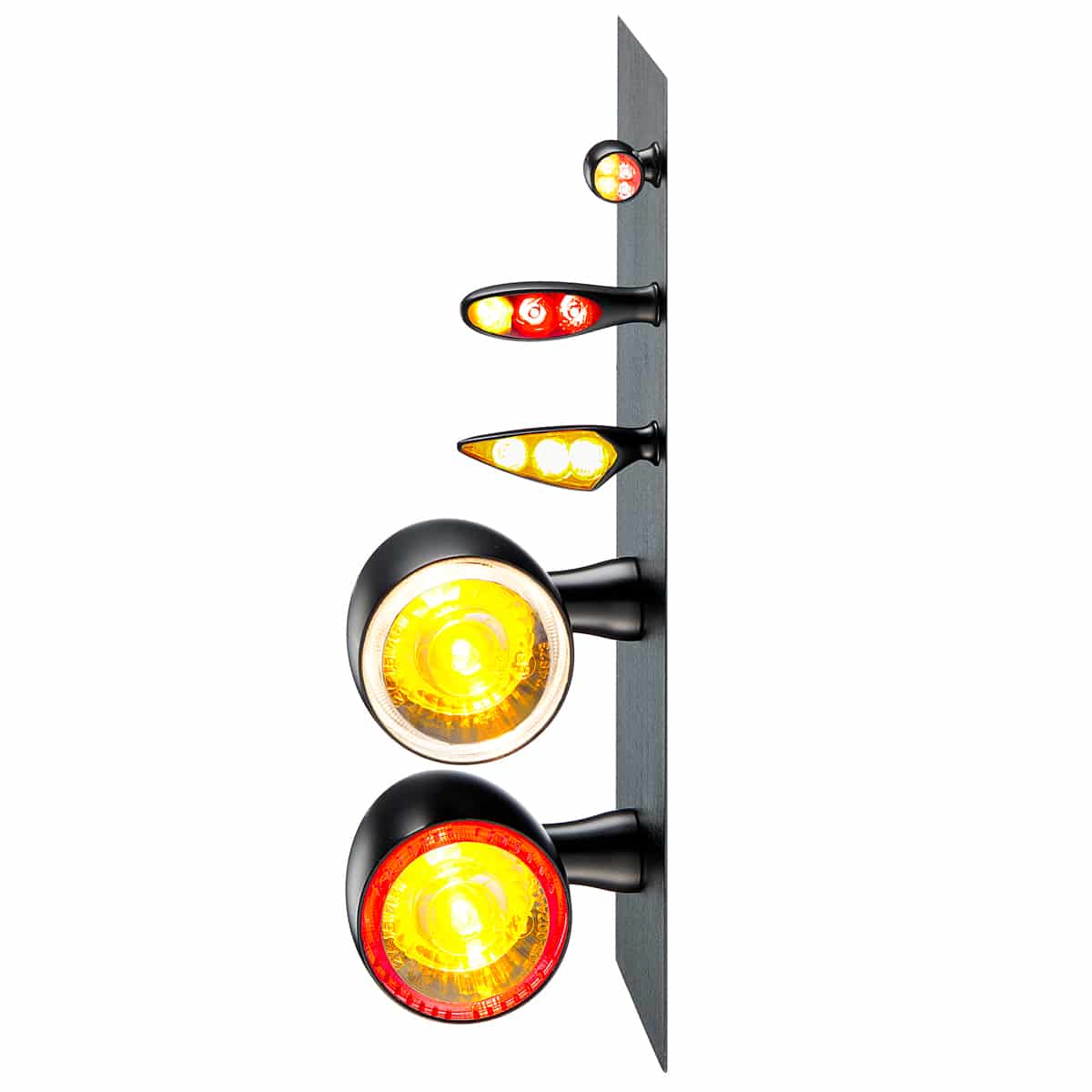

The Bullet 1000® was created with a clear goal: An indicator with the classic bullet look and a classy Kellermann design, but equipped with modern LED technology. A newly developed light technology (Kellermann-HPT®) creates a homogenous ring of light. Design quality is not only a question of shape and surfaces but also a result of the complete look and feel when the lights are on. The high quality metal housing with a maximum diameter of 39 mm is like a jewel on the motorcycle. It is available in chrome, black and matte chrome. The Bullet 1000® works with any sophisticated bike design. The Bullet 1000® comes in four different technical versions: Extreme indicator, indicator with yellow position light, indicator with white position light and indicator with rear and brake light.
Bullet 1000® PL
The Bullet 1000® PL is an indicator with an integrated position light in the shape of a continuous white light ring. Together with the main light they boost the safety features of the bike. And once the indicator is activated the position lights support the indicator function by flashing in sync. After the indicator has been turned off the position light will resume its function. As the Bullet 1000® Extreme so does the Bullet 1000® PL offer the LED typical fast response** combined with Bullet typical soft response of the inner light section. Alltogether a harmonic indicator performance that blends in with the great overall look and feel of this amazing product. The position lights can be mounted either on the original position light base or connected to the dashboard light of the motorcycle.*
* Electrical accessories may be required to match indicators signal frequency.
** Combination out of the IC operated Longlife Protection Guard system with high-performance-LEDs latest type of construction.
ECE-tested for front
ECE regulation for yellow position lights:
A position light can send out white or yellow light.
In the ECE regulation 52, paragraph 5.13., it is stated:
"Colours of the lights: position light can be white or yellow"
If yellow light is send out, two position lights have to be installed.
Additionally paragraph 6.6.1 states:
"Number: two (one for each site), if yellow"
- Increased safety because of improved visibility
- Replaces the existing position light as well as the indicator
- Special flashing effect
- Unique and homogeneous light ring
- Extreme light power
- HPT®- Homogenous Projection Technology
- Kellermann HighPower LED Technology
- Longlife Protection Guard®, IC operated, 330 kHz
- High quality metal housing
- Suitable for 12 volt DC applications
- With M8 x 20 fastening screw
- European design protection
| Casing: | chrome |
|---|---|
| DC on-board power supply: | 12 V |
| ECE-type approval: | Motorcycles |
| Functional features: | Indicator, Position light |
| Length (without thread/fastening): | 50 mm |
| Lens colour: | clear |
| Mounting: | mounted indicator |
| Mounting thread: | M8 x 20 mm |
| Position: | front |
| Position light colour: | yellow |
| Produktlisting-Features: | Indicator, Position light |
| Technology: | LED |
| Ø max.: | 39 mm |
Montagezubehör
Bulb holder evo for micro 1000® Halogen (from 2004)
Mounting Plates 123.753 used for:Italian Motorcycles (Ducati, Moto Guzzi, usw.)
Content: 2 Piece(s) (€6.48 / 1 Piece(s))
Elektronisches Zubehör
Micro relay for the pros The R 1 flasher relay has very small dimensions and flashes independently of load at a steady 75 pulses per minute. It also has a connection available for the flasher dashboard light. It is easily installed into the feed to the indicator switch, or can be swapped with the original 2-3 pole flasher relay. It is therefore suitable for all motorcycles with indicator switches. Should the change to LED indicators result in the non-intentionally activated indicators also flashing; then the indicator control light must also be connected to the R 1 relay. The ‘hazard warning’ effect will then be effectively All necessary components required for installation are included. ECE-tested Simple installation in feed to the indicator switch or swap the original 2-3 pole flasher relay Connection to indicator control light also possible Restricts the accompanying flashing of non-activated indicators Load-independent / steady flash rate Switching capacity 0-50W by 12V/ 0-24W by 6V Very small dimensions 22 x12 x 6 mm (L/W/H) Suitable for indicator switches Suitable for 6 and 12 volt DC applications
i.BOS - CL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - CL1 provides correct function of the control and hazard light, e.g. when using DF versions for Harley Davidson models with HD-LAN. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, break light)
i.BOS - EL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - EL1 provides correct function of the hazard light, e.g. when using DF versions. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, light)
i.SED V12 suitable for vehicles with 12 volt indicator application For example when mounting indicators with higher wattage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual „DF“ products on vehicles where the indicators ground is switched but not the plus as usual
i.SED V6 suitable for vehicles with 5-9 volt indicator application For example when mounting indicators with higher wattage than original indicators with higher voltage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual
Posi-Lock cable connector splash water connections. The cable is connection between seconds, without soldering.
Content: 9 Piece(s) (€1.44 / 1 Piece(s))
Posi-Lock cable connector MINI Splash water connections The cable is connection between seconds, without soldering
Content: 5 Piece(s) (€1.99 / 1 Piece(s))
