BL 1000 LED
€94.95
Available, delivery time: 1-3 days
Product information "BL 1000 LED"
New, and already a classic

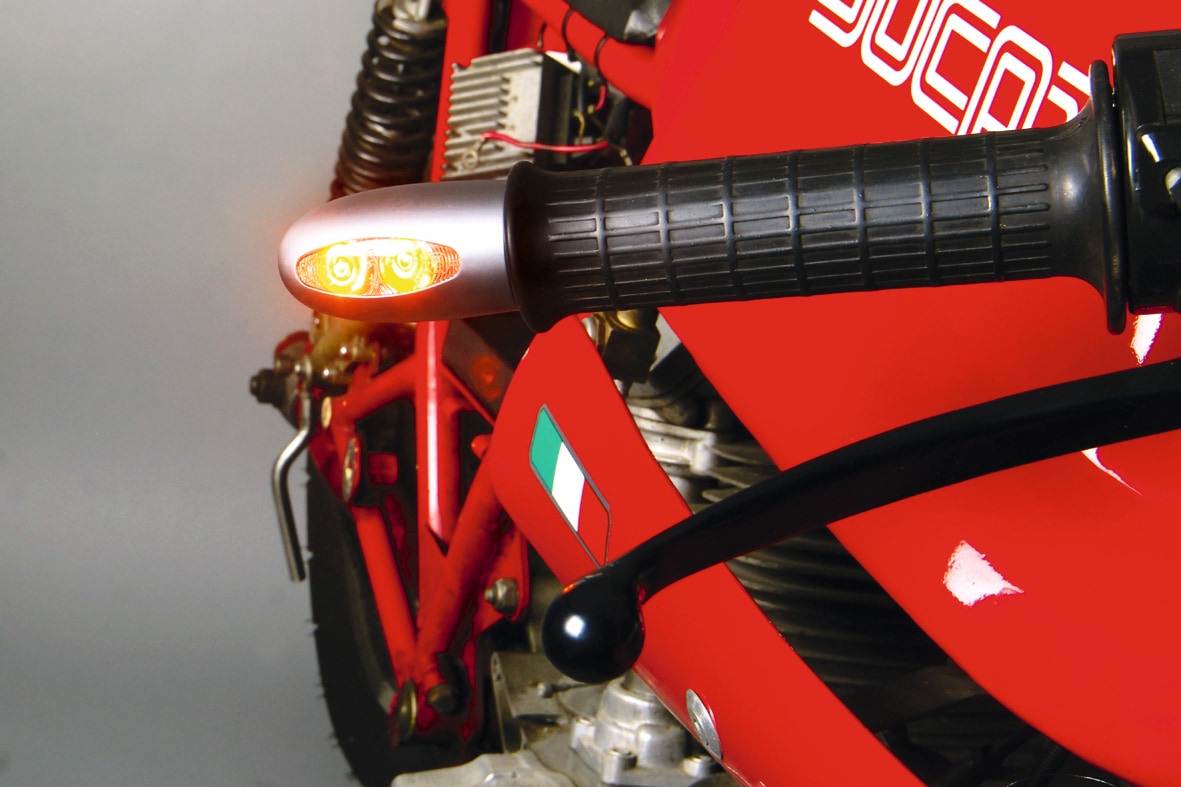

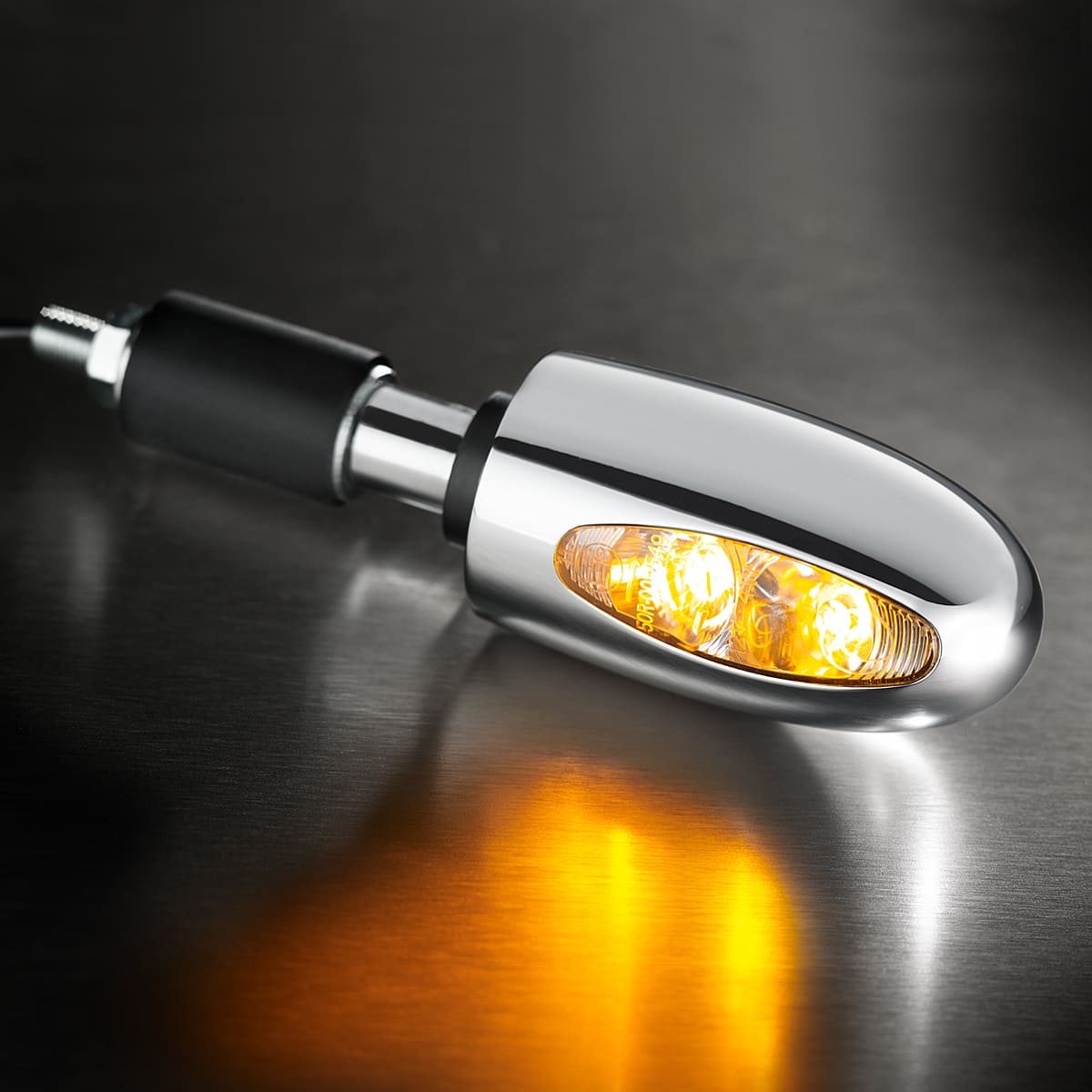

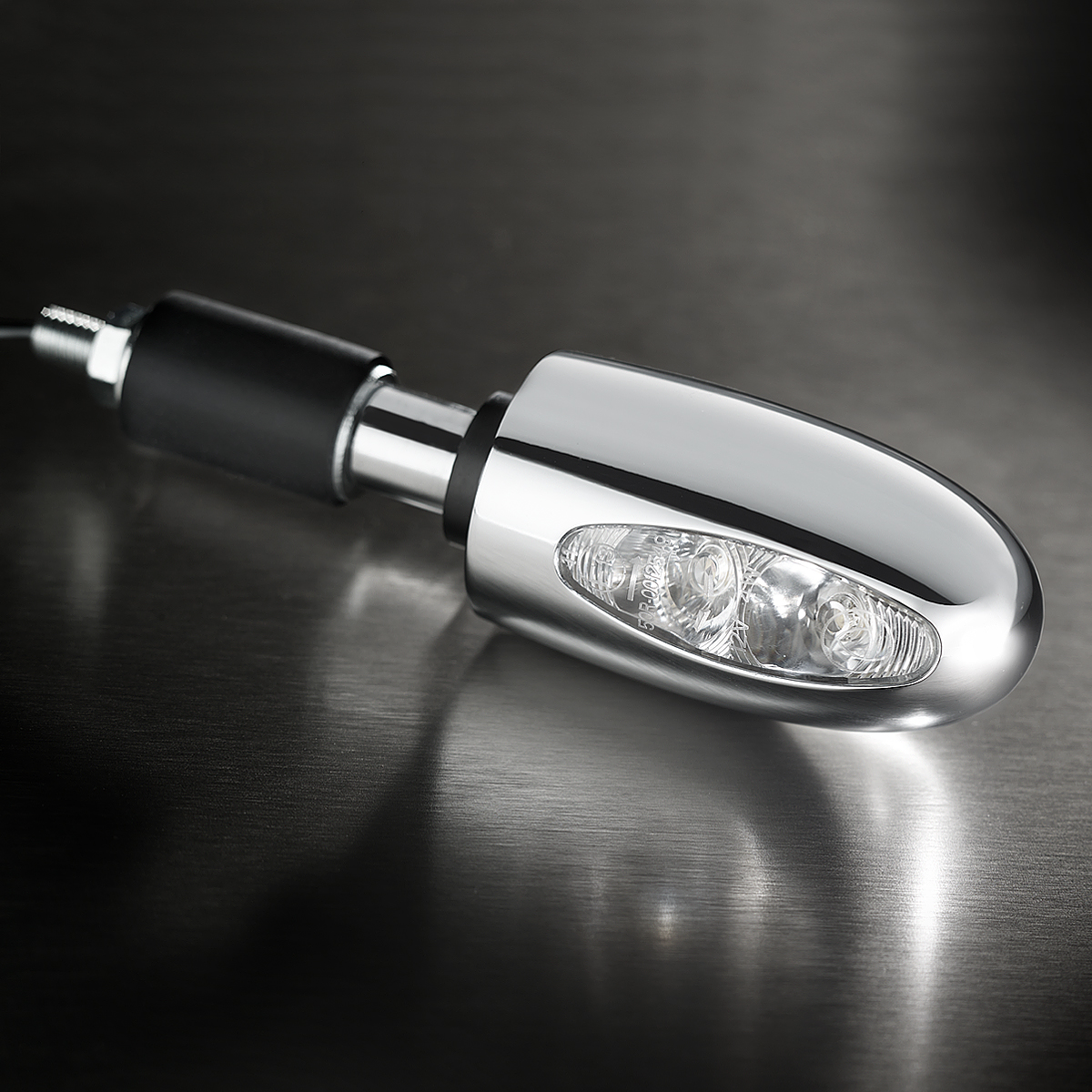

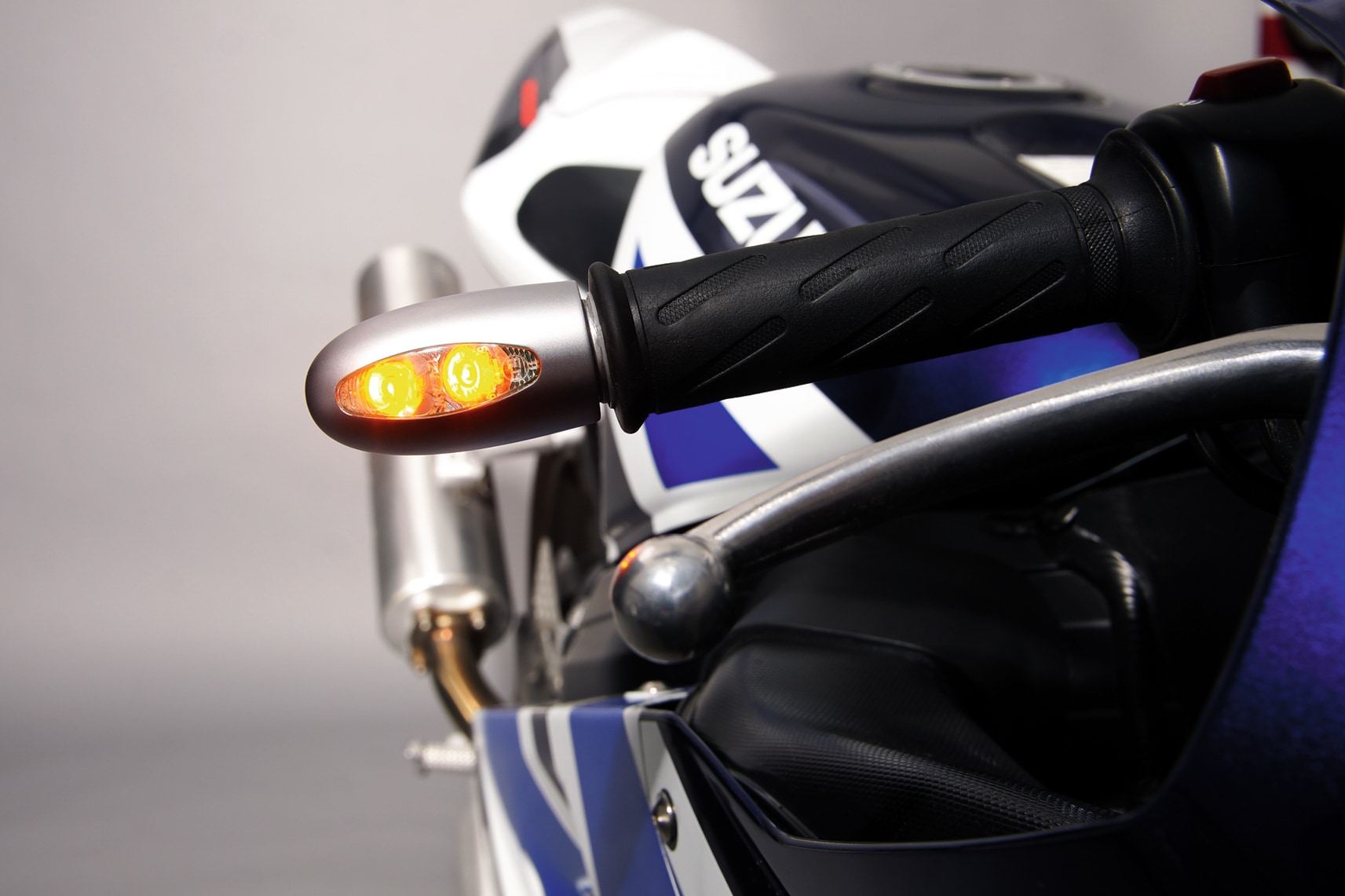

The BL 1000 LED is the latest development in handlebar end indicators. Our specially control technology**, the modern high-performance-LEDs and the innovative clear glass look mean
performance as well as beautifully proportioned styling at the end of the handlebar. The BL 1000 LED combines function with handlebar vibration damping. All necessary adapters are supplied for mounting on to most model handlebars*.
* Electronical accessories may be required to match indicators signal frequency.
** Combination out of the IC operated Longlife Protection Guard® system with high-performance-LEDs latest type of construction.
ECE-tested for front
- Increased safety because of brightness and direct response of LEDs
- Handlebar vibration damping function
- Kellermann HighPower LED Technology
- Long Life Protection Guard®, IC operated, 330 kHz
- High quality metal housing
- Suitable for 12 volt DC applications
| DC on-board power supply: | 12 V |
|---|---|
| ECE-type approval: | Motorcycles |
| Functional features: | Indicator |
| Length (without thread/fastening): | 59 mm |
| Produktlisting-Features: | Indicator |
| Ø handlebar end: | 30 mm |
| Ø max.: | 32,5 mm |
Montagezubehör
Bulb holder evo for micro 1000® Halogen (from 2004)
Rubber adapter set Mounting rubber + nut Type 3 from 20 mm
Variable mounting adaptor M6, black This adaptor offers a clean and easy solution for various mounting options and thus replaces an otherwise complex custom-made construction.It consists of two parts: A clamping sheet and a shank nut with an M6 internal thread. The clamping sheet, which can be shifted and rotated on the shank nut, is compatible with any M5 threaded lamp (Atto®, micro S, Rhombus S) at every angle.Due to the variances of this mounting the lamp can be installed in perfect alignment with the direction of traffic and is locked in place with grub screws. For example underneath the instruments (see pictures attached).Simply replace the shaft nut of the brake or clutch lever by this shank nut. As on the pictures attached, the clamping sheet can also be installed together with the handlebar mirror.
Elektronisches Zubehör
Micro relay for the pros The R 1 flasher relay has very small dimensions and flashes independently of load at a steady 75 pulses per minute. It also has a connection available for the flasher dashboard light. It is easily installed into the feed to the indicator switch, or can be swapped with the original 2-3 pole flasher relay. It is therefore suitable for all motorcycles with indicator switches. Should the change to LED indicators result in the non-intentionally activated indicators also flashing; then the indicator control light must also be connected to the R 1 relay. The ‘hazard warning’ effect will then be effectively All necessary components required for installation are included. ECE-tested Simple installation in feed to the indicator switch or swap the original 2-3 pole flasher relay Connection to indicator control light also possible Restricts the accompanying flashing of non-activated indicators Load-independent / steady flash rate Switching capacity 0-50W by 12V/ 0-24W by 6V Very small dimensions 22 x12 x 6 mm (L/W/H) Suitable for indicator switches Suitable for 6 and 12 volt DC applications
i.BOS - CL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - CL1 provides correct function of the control and hazard light, e.g. when using DF versions for Harley Davidson models with HD-LAN. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, break light)
i.BOS - EL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - EL1 provides correct function of the hazard light, e.g. when using DF versions. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, light)
i.SED V12 suitable for vehicles with 12 volt indicator application For example when mounting indicators with higher wattage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual „DF“ products on vehicles where the indicators ground is switched but not the plus as usual
i.SED V6 suitable for vehicles with 5-9 volt indicator application For example when mounting indicators with higher wattage than original indicators with higher voltage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual
Posi-Lock cable connector splash water connections. The cable is connection between seconds, without soldering.
Content: 9 Piece(s) (€1.44 / 1 Piece(s))
Posi-Lock cable connector MINI Splash water connections The cable is connection between seconds, without soldering
Content: 5 Piece(s) (€1.99 / 1 Piece(s))
