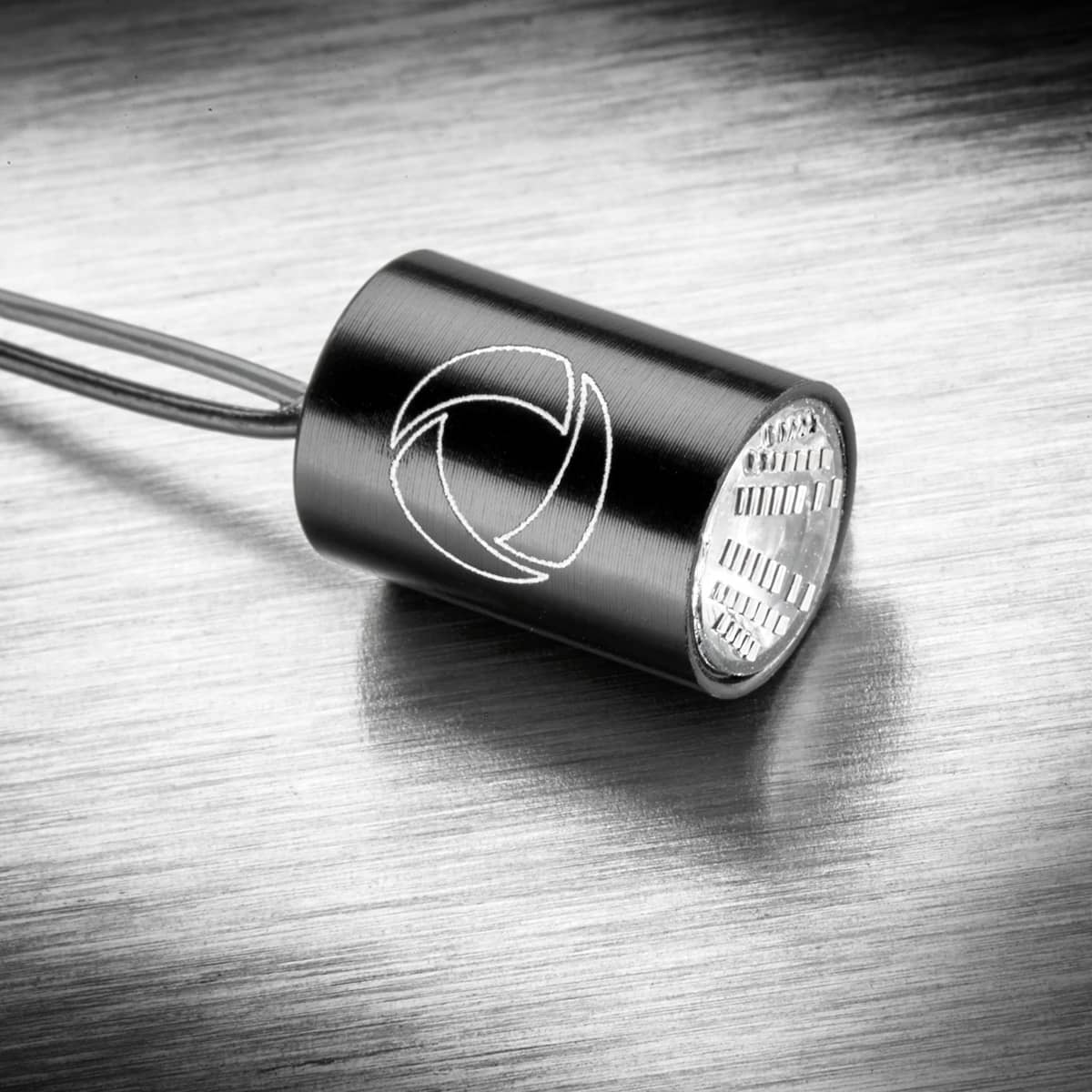

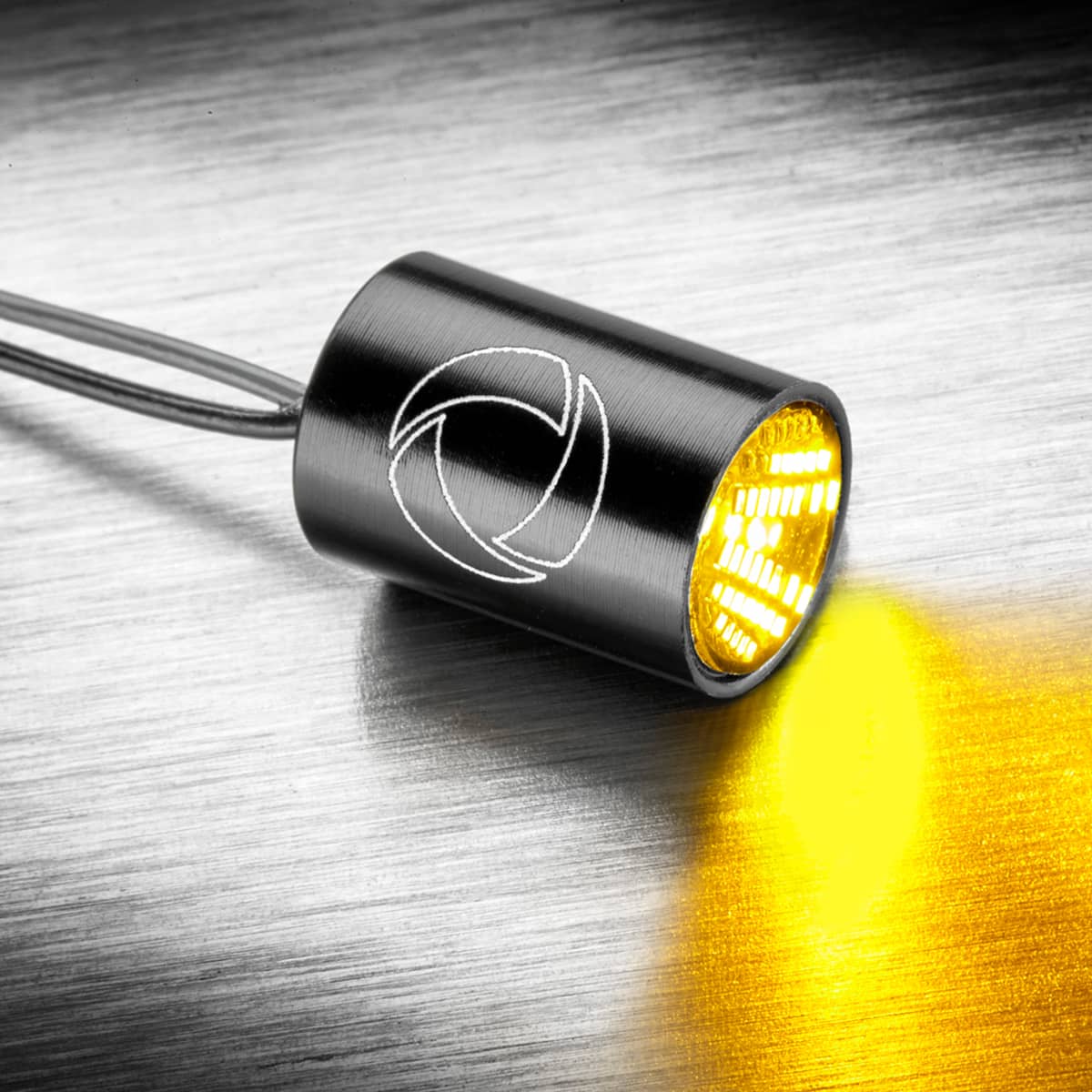

Atto® Integral
€64.95
Available, delivery time: 1-3 days
Product information "Atto® Integral"
Indicator power ready for built-in!
With the Atto® Integral the highly successful Atto® indicator is now available as a built-in version. Almost invisible and with full illuminating power: With this combination the Atto® Integral is a real hidden talent!
Never before did one of our indicators disappear so easily. The build-in version offers completely new styling options for the motorcycle. The slim casing fits in perfectly and enhances the ‘clean look’ when customizing. This indicator is hiding and styling at the same time.
The Atto® Integral flashes with the intensity that has made the products of Kellermann legendary and the company over and over again a trendsetter in this segment. This indicator offers maximum illuminating power in a slim casing, this extremely compact light offers the best of Kellermann in a built-in version. We advise not to look for too long into the beam of this little power house.
The optimized light channeling is managed through a smart system of lenses and reflectors. This combination is possible thanks to the use of the well known Kellermann HighPower LED technology**, along with the proven EXtranz® - Extreme Optical Transparency technology.
The complete electronics of the Atto® Integral are in the casing, this indicator can be plugged into the 12 volt net directly.*
* Possibly electronic equipment is needed to regulate the flashing rate.
** Combination out of the IC operated Longlife Protection Guard® system with high-performance-LEDs latest type of construction.
ECE-tested for front and rear
- Completely new styling options
- Sensationally small, spectacularly bright
- EXtranz® - Extreme Optical Transparency Technology
- Kellermann HighPower LED Technology
- Longlife Protection Guard®, IC operated, 330 kHz
- High quality metal housing
- Suitable for 12 volt DC applications
- European design protection
| Casing: | black |
|---|---|
| DC on-board power supply: | 12 V |
| ECE-type approval: | Motorcycles |
| Functional features: | Indicator |
| Length (without thread/fastening): | 13,2 mm |
| Lens colour: | clear |
| Mounting: | Built-in article |
| Position: | front & rear |
| Produktlisting-Features: | Indicator |
| Technology: | LED |
| Ø max.: | 8,9 mm |
Montagezubehör
Bulb holder evo for micro 1000® Halogen (from 2004)
Extension Spare parts for Silentgummiadapters (123.620, 123.610, 170.620) Measure: M8 x 30mm
Elektronisches Zubehör
Micro relay for the pros The R 1 flasher relay has very small dimensions and flashes independently of load at a steady 75 pulses per minute. It also has a connection available for the flasher dashboard light. It is easily installed into the feed to the indicator switch, or can be swapped with the original 2-3 pole flasher relay. It is therefore suitable for all motorcycles with indicator switches. Should the change to LED indicators result in the non-intentionally activated indicators also flashing; then the indicator control light must also be connected to the R 1 relay. The ‘hazard warning’ effect will then be effectively All necessary components required for installation are included. ECE-tested Simple installation in feed to the indicator switch or swap the original 2-3 pole flasher relay Connection to indicator control light also possible Restricts the accompanying flashing of non-activated indicators Load-independent / steady flash rate Switching capacity 0-50W by 12V/ 0-24W by 6V Very small dimensions 22 x12 x 6 mm (L/W/H) Suitable for indicator switches Suitable for 6 and 12 volt DC applications
i.BOS - CL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - CL1 provides correct function of the control and hazard light, e.g. when using DF versions for Harley Davidson models with HD-LAN. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, break light)
i.BOS - EL1 Serves as a quick fix for inaccurate cockpit displays The i.BOS systems (intelligent boxing operation system) provide a quick fix, if after the installation of the indicator the control light flashes too quick or other control lights in the cockpit function inaccurately. i.BOS - EL1 provides correct function of the hazard light, e.g. when using DF versions. *Additionally and on case by case the option "LED indicator" has to be activated in the software. Required is 1 set for 2 indicators / 2 DF indicators (indicator, rear light, light)
i.SED V12 suitable for vehicles with 12 volt indicator application For example when mounting indicators with higher wattage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual „DF“ products on vehicles where the indicators ground is switched but not the plus as usual
i.SED V6 suitable for vehicles with 5-9 volt indicator application For example when mounting indicators with higher wattage than original indicators with higher voltage than original indicators on vehicles where the ground is „plus“ but not „minus“ as usual
Posi-Lock cable connector splash water connections. The cable is connection between seconds, without soldering.
Content: 9 Piece(s) (€1.44 / 1 Piece(s))
Posi-Lock cable connector MINI Splash water connections The cable is connection between seconds, without soldering
Content: 5 Piece(s) (€1.99 / 1 Piece(s))
